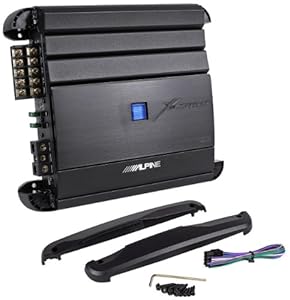

Brand New Alpine MRX-V70 X Series D Class 5-Channel 710 Watt RMS Digital Amplifier With Reliable No-Shutdown Design

Product Description






Brand New Alpine MRX-V70 X Series D Class 5-Channel 710 Watt RMS Digital Amplifier With Reliable No-Shutdown Design
Features:

Alpine MRX-V70 X Series Digital 5-channel car amplifier
Max Power Output: 1200W (CH1/2/3/4) + 1200W (Subwoofer)
RMS Power Output: Per channel @ 4 Ohms: 60 Watts RMS x 4 Channels + 250W RMS x 1 Channel
RMS Power Output: Per channel @ 2 Ohms: 90 Watts RMS x 4 Channels + 350W RMS x 1 Channel
RMS Power Output: Bridged 4 Ohms: 180 Watts RMS x 2 Channels
Crossover Frequency (CH1/2/3/4, HPF): 50 - 400 Hz, -12 dB/oct.
Crossover Frequency (Subwoofer, LPF): 50 - 400 Hz, -24 dB/oct.
Subsonic Filter: 5 -30 Hz, -24dB/oct.
EQ (Equalizer): 0 to +12 dB, fc=50Hz
Foot Print (WxHxD) mm: 270 x 58 x 230 mm
Foot Print (WxHxD) in: 10-5/8'' x 2-1/4'' x 9''
Heat Sink (WxHxD) mm: 210 x 58 x 230 mm
Heat Sink (WxHxD) in: 8-1/4'' x 2-1/4'' x 9''
Power Requirements: 14.4 V.DC (11-16V allowable)
Input Sensitivity (RCA Input): 0.1 - 4.0 V
Input Sensitivity (Speaker Level Input): 0.5 - 10 V
Input Impedance: >10k ohms
Frequency Response (+0, -3dB: 1W into 4 Ohms) for CH-1/2/3/4: 5 - 45k Hz
Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 5 - 400 Hz
THD+N (10W into 4 Ohms) for CH-1/2/3/4: 0.02 %
THD+N (10W into 4 Ohms) for Subwoofer: 0.008 %
Damping Factor for CH-1/2/3/4: >500
Damping Factor for Subwoofer: >1000
Signal to Noise (Rated Power into 4 Ohms) for CH-1/2/3/4: 104 dB
Signal to Noise (Rated Power into 4 Ohms) for Subwoofer: 110 dB
Terminal Layout: Two-Sided
Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
Amplifier Type: Class-D (Digital)
Channel Design: 4-channel + Subwoofer
Power Supply Design: DC-DC PWM Power Supply
Power Supply: MOSFET
Final Outputs: Direct FET
Crossover: Variable Low Pass & High Pass Filter

Brand New Alpine MRX-V70 X Series D Class 5-Channel 710 Watt RMS Digital Amplifier With Reliable No-Shutdown Design
